Specification

  • Motor rating: 0.24 kW (1/3 hp)
  • Cam shaft RPM : 60
  • Table lift: 15 +/- 0.3 mm
  • Overall dimensions with swing bolts raised  : (H x W x D) 340 x 400 x 1045 mm
  • Weight : 90 kg

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Accessories Feeding Hopper 39-1120 NA Visit Page
Accessories Three-gang Mould 39-1100 NA Visit Page
Spare/Consumable Mortar Sand 39-1170 NA Visit Page
Spare/Consumable Scraper 39-1130 NA Visit Page

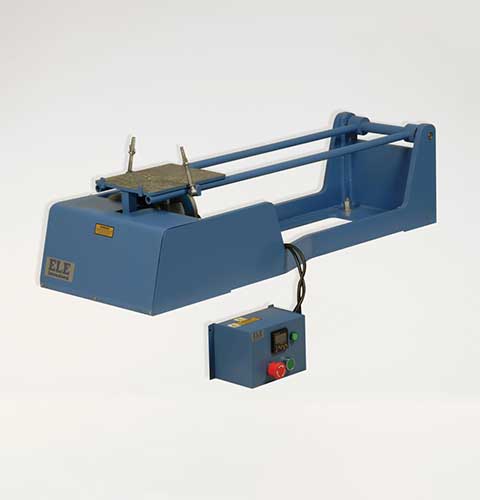

This machine consists of a mould table seated on a rotating cam driven at 60 revolutions per minute. The apparatus is supplied with a remote mains switch box, incorporating a push button start/stop control and automatic stop control at end of test.

Supplied without moulds.

**Not available for sale in the USA**
