Specification

  • Table: Cast-bronze; 10” (254 mm) diam.;combined weight with shaft, 9 lbs.±0.1 lb. (4.1 ±0.05 kg).
  • Frame: Heavy-duty construction with cam;produces a 1/2” (12 .7 mm) table drop.
  • Overall Dimensions: 10” (254 mm) diam. x approx. 10” (254 mm) h.
  • Flow Mold: Machined bronze; 2-3/4” (69.8 mm) top i.d. x 4” (101.6 mm) base i.d. x 2” (50.8 mm) h.
  • Weight: Net 24.75 lbs. (11.2 kg).

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Accessories ASTM Calipers 38-6080 NA Visit Page
Accessories Flow Mould 38-6040 NA Visit Page

Hand-operated, includes flow mold.

  • Cast-bronze table for corrosio resistance and long life.
  • Heavy-duty frame construction.
  • Supplied complete with bronze flow mold.

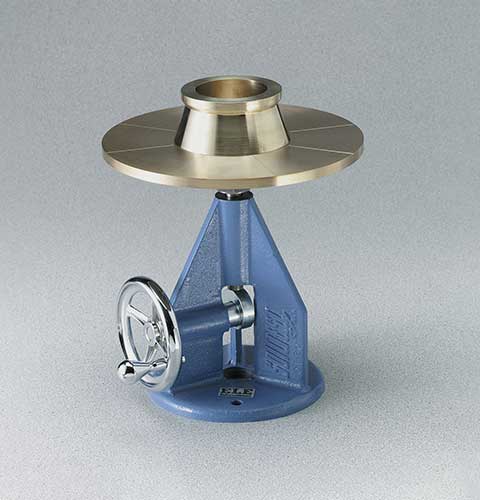

The Flow Table is designed in accordance with ASTM and AASHTO specifications for use in determining the flow of hydraulic cement mortars and cement pastes.

In operation the test specimen is molded on the table to a spacified volume and shape. With the mold removed, the table is dropped a specified number of times. Upon completeion of the test, the flow, (or increase in average diameter) is measured.
