Category: Compression( Flexural ,Transverse) Machines Accessories, Concrete
Sub Category: Compression Machines Accessories
Product Group: Flexural Testing for Beams, Flexural Frame Attachments

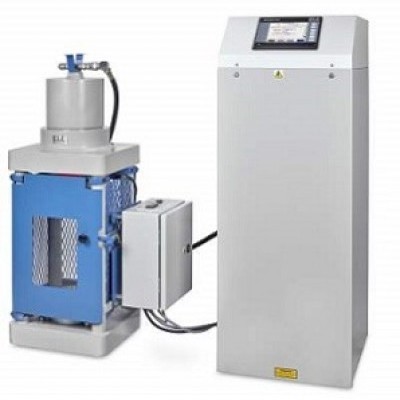

This rigidly constructed, open sided frame is suitable for testing 100 mm and 150 mm square-section beams. The frame supports a hydraulic ram and upper sub-platen assembly incorporating a spherical seating. The upper and lower sub-platens will accept various specimen loading bearers, which are supplied separately.
Please note, a flexural fitting kit is required, see the accessories tab for options.
| Description | 100kN Flexural (Beams) Frame |
| Weight, kg | 159 |
| Dimensions length x width x height, mm | 380 x 505 x 845 |
| Maximum Vertical Clearance mm | 164 mm |
| Maximum Ram Travel mm | 75 mm |
• 100 kN Flexural Fitting Kit ADR Auto for 110 - 120 V AC, 60 Hz, 1 ph
• 100 kN Flexural Fitting Kit ADR Auto for 220 - 240 V AC, 60 Hz, 1 ph
• 100kN Flex Fitting Kit For Accu-Tek
• 100kN Flexural Fitting Kit (ADR) Used for Connecting Flexural Frames to ADR Compression Machines.
• ASTM C78 Specimen Bearer Assembly Case-Hardened 38mm Dia X 160mm Length.
• Ball Seating Assembly 150mm Dia Platens.
• BS 1881 Specimen Bearer Assembly 38mm Dia X 160mm Length.
• Change over valve assembly kit for 230V, 50/60Hz
• Standard Distance Piece - 100 mm Depth
• Standard Distance Piece - 20 mm Depth
• Standard Distance Piece - 50 mm Depth
• Standard Distance Piece - 60 mm Depth
• Standard Distance Piece - 80 mm Depth
