37-8320
her standard. Capacities 2 tonnes to 1000 tonnes <±0.1% Accuracy Sealed to IP65 Robust Construction Submersible Version Available Competitively Priced The 0.1% accuracy series of column compression load cells are designed for use as reference standards for the calibration of other load cells or in high capacity weighing applications, where precise measurement and high accuracy is of utmost performance. Their simple column design and sealed construction assures excellent resistance in the most arduous conditions. Applications: Reference standards, high capacity weighing applications, silo weighing, pile force measurement, heavy duty jack levelling systems, press calibration, centre of gravity (CoG) measurement systems and high capacity multi-point weighing systems.
37-8400/10
certificate (not calibrated to UKAS standards). Upon receipt, customer may calibrate to NIST or other standard.
37-8400
bration certificate. This Load Cell is supplied with rechargeable batteries and universal charger.You can only add up to 50 products to your wishlist at a time.
Category: Concrete
Sub Category: Compression Machines Accessories
Product Group: Calibration Devices
Complete with Hand Held Readout Unit and UKAS calibration certificate.
The 0.1% accuracy series of column compression load cells are designed for use as reference standards for the calibration of other load cells or in high capacity weighing applications, where precise measurement and high accuracy is of utmost performance. Their simple column design and sealed construction assures excellent resistance in the most arduous conditions.
Applications: Reference standards, high capacity weighing applications, silo weighing, pile force measurement, heavy duty jack levelling systems, press calibration, centre of gravity (CoG) measurement systems and high capacity multi-point weighing systems.
**Not available for sale in the USA**
110 – 240 V, AC 50 – 60 Hz, 1 ph.

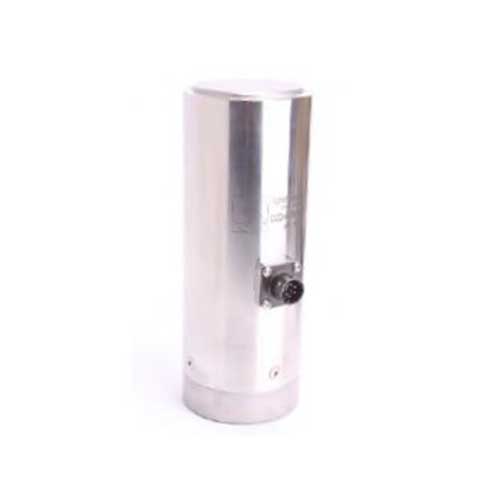

| Description | 2000 kN Load Calibration Device complete with Handheld Readout Unit & Calibration Certificate ISO376 |
| Capacity | 200 tonnes |
| Output | 2.0m V/V (nominal) |
| Total accuracy | <+/- 0.1% of rated output |
| Environmental protection | IP65 |
| Electrical connection | 4m PUR cable |
| Operating temperature range | -20 to +70 deg C |
| Compensated temperature range | -10 to +50 deg C |
| Supply voltage | 10v recommended 15v max |
| Operating mode | Compression |
