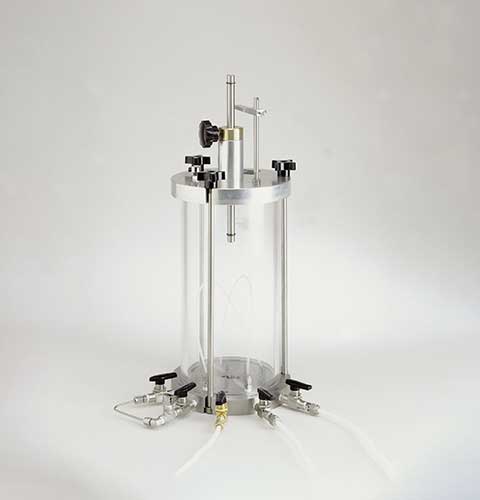

4" Triaxial Cell

Specification

• Maximum Working Pressure: 15 0 psi (1,034 kPa).
• Maximum Piston Load: 10,100 lbf. (45 kN).
• Head Assembly: Anodized aluminum with quick-disconnect fill/vent port and dial gauge support assembly.
• Head Assembly: Sealed, with linear bearings and piston locking clamp.
• Piston Assembly: Stainless steel with four stainless steel no-volume change ball valves at inflow and outflow ports and one brass ball valve at the lateral port. All included tubing is of either stainless steel or Teflon construction.
• Base Assembly: Stainless steel with four stainless steel no-volume change ball valves at inflow and outflow portsand one brass ball valve at the lateral port. All included tubing is of either stainless steel or Teflon construction.
• Dimensions: Approx. 8” diam. x 18” h. (203 x 45 8 mm) excludingvalves.
• Weight: Net 25 lbs. (11 .3 kg).
